SBY
MANTIS

Autonomous Boat for Bathymetric Studies in Industrial Environments

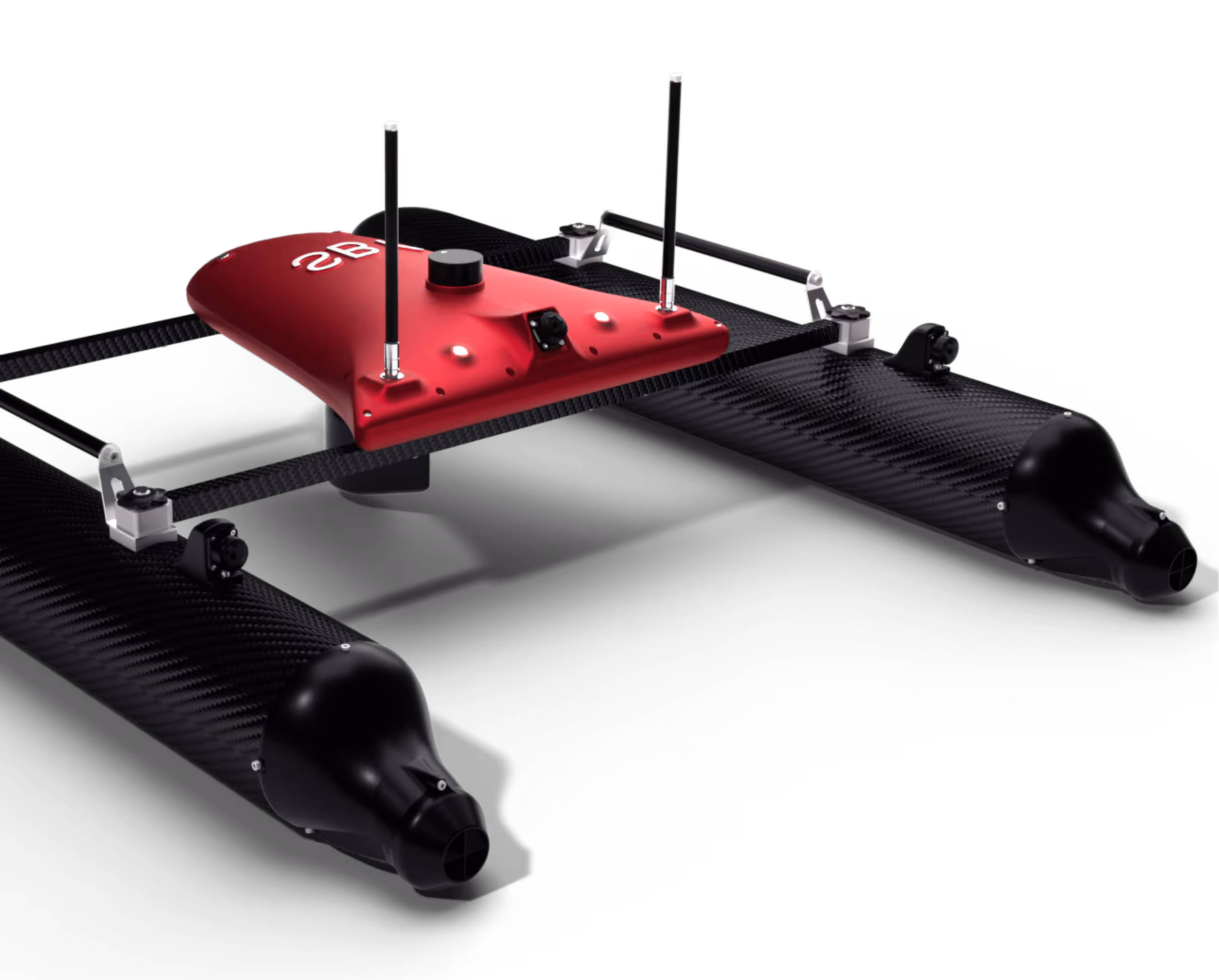

Bote autónomo Mantis para monitoreo hidrográfico en aguas industriales

Compact and Reliable

SBY Mantis is designed to monitor hydrography in industrial waters with precision and range.
It performs bathymetry autonomously, minimizing risks to personnel.
User-friendly operation, making it easy to handle.
Built with high-quality materials, it withstands harsh conditions.
It offers robust solutions for hydrographic monitoring in challenging environments.
Developed to meet the extreme conditions of the mining industry.

Versatility and Adaptability

Design tailored to the real needs of the mining industry.

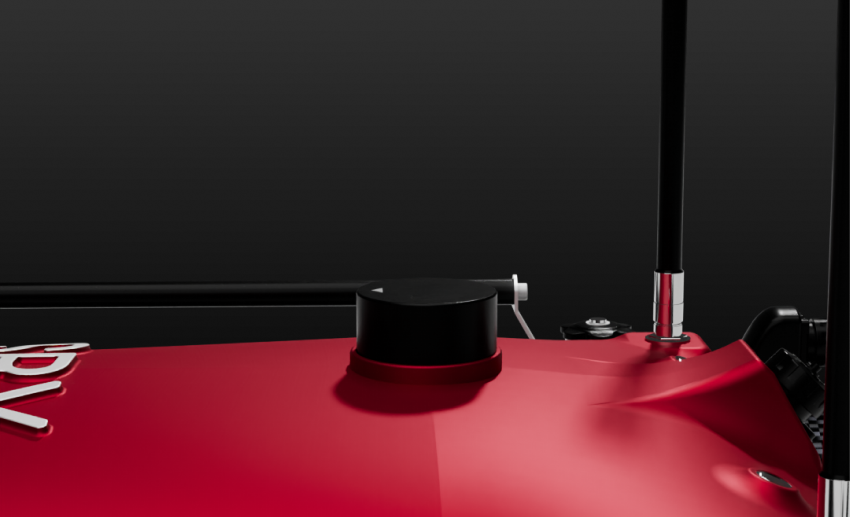

GPS Mantis (GNSS con RTK)

GPS

GNSS with RTK

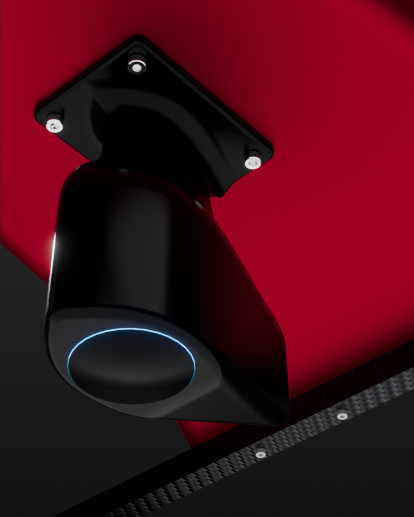

Ecosonda instalada en el bote autónomo Mantis

Echosounder

Accuracy: 1 cm at 30 m

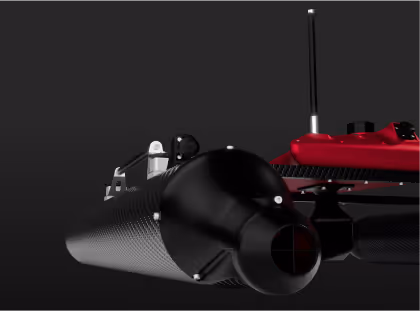

Cuerpo de fibra de carbono en bote autónomo Mantis

Robustness

Carbon fiber hull

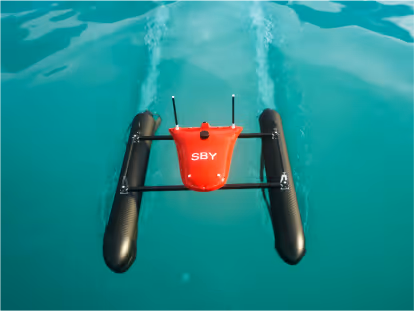

Motores de Alta Potencia

High-Power Motors

Max speed: 1.6 m/s

Baterias Li-ion

Li-ion Batteries

Battery life +5h

Design and dimensions

Vehicle type: Catamaran
Dimensions 1250 x 1040 x 280 mm
Water Penetration Protection in hull and floats
Components: Mantis boat, remote control, PC with navigation and monitoring software

Operation

Telemetry Range: +1.5km, with autonomous operation capability beyond the range.
Speed: Automatic mode at 1m/s, manual mode up to 1.6m/s
Autonomy: +5h
Control: Autonomous operation and remote control

Echo Sounder

Long-Range Echo Sounder: Up to 100m depth
Short-Range Echo Sounder: Up to 30m depth
Pulse frecuency: 115 kHz / 400 kHz
Beam width: 30°/ 5°
Measurement interval: 0.5 s

Positioning (GPS)

Accuracy: Dual frequency with 2 cm precision
SPS mode: +-4 m
RTK mode: +- 2 cm
Constellations: GPS, L1, L2, Glonass G1, G2, Galileo E1E5B,
Beidou B1, B2
